Opis

NOVO ! Zebex Z-8072 je nova generaciaj 2D stacionarnih skenera sa moćnom kamerom i ultrabrzim procesiranjem ! Podjednako dobro čita sve vrste 1D i 2D barkodova.

Dokumenta:

Funkcije

- Dual-laser technology. Enables a 32-line scan pattern, 2,400 scans per second for lighting quick and accurate reads within a broadened scan field - Z-SCAN technology. ZEBEX Proprietary real-time hardware decoding ensures instant recognition & decoding of 1D codes - Strict IP54 standards. Durable, environment-resistant housing - Barcode stitching. An applied logic for deciphering and rebuilding damaged and truncated barcodes, increasing first-pass reads and ensures high throughput - Instant “objective-fly-by” automatic wake-up. Reduces power demand and extends scanner life as it “wake up” from automatic sleep mode when passed over a barcode - Visual diagnostic blue LED. Provide enhanced user feedback of scan status - Easy on-site configuration and upgradeability. Easy to set up and configure using either a Windows-based program or a barcode scanning-based guide; electronically erasable flash memory ensures simple on site upgrading - RFID reader and optional built-in EAS antenna capable. Ready for fast-evolving retail market demand

Specifikacija

- Light Source: Dual 650 nm visible laser diodes
- Depth of Field: 0 – 216 mm (UPC/EAN 100%)
- Width of Field: 90 mm @ contact; 218 mm @ 216 mm of depth
- Number of Scan Lines: 32
- Scan Speed: 2,400 scans per second
- Scan Pattern: 8 directions of scan field
- Minimum Bar Width: 5 mil @ PCS 90%
- Print Contrast: 30% @ UPC/EAN 100%
- Indicators (LED): Two-color LED (blue & red)
- Beeper Operation: Programmable tone & beep time
- System Interfaces: Keyboard, RS-232C, USB 1.1, wand, aux. RS-232
- Cable: Standard 2 m straight
- Power Consumption: 1.5 watts
- Operating Current: 300 mA
- Laser Class: CDRH Class IIa; IEC 60825-1: Class I
- EMC: CE & FCC DOC compliance
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -20°C – 60°C (-4°F – 140°F)
- Humidity: 5% – 95% RH (non-condensing)
- Light Levels: Max. 4,000 Lux (fluorescence)
- Shock: Designed to withstand 1 m drops
- Compatibility: EAS compatible
- 1D Barcodes: UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, Japanese Bookland EAN,Code 39,Code 39 with full ASCII, trioptic Code 39, Codabar (NM7), Code 128, Code 128 with full ASCII, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, MSI/Plessy, China Postal Code, Code 32
- Options: IATA Code, Industrial 2 of 5, Standard 2 of 5, Discrete 2 of 5, 90 mm @ contact; 218 mm @ 216 mm of depth RSS variants

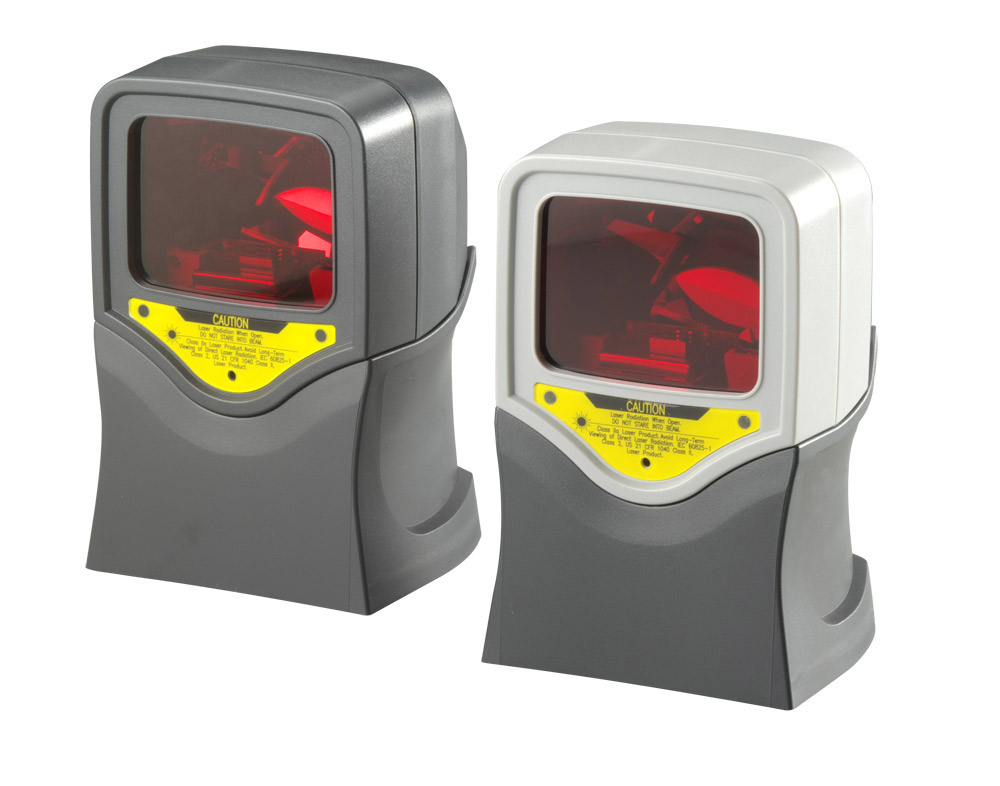

Opis

Multi-interface Omni-Directional Laser Scanner with RS232/KW cable

Funkcije

- Support both omnidirectional and single-line scanning. Button switch in between omnidirectional and single-line scanning
- Aggressive scanning performance. Powerful 20-line laser yields 1400 scans per second for omnidirectional scanning, and 74 scans per second for single-line scanning
- Z-SCAN technology. ZEBEX proprietary real-time hardware decoding ensures instant recognition and decoding of the most popular 1D barcodes
- Ergonomic and rugged design as well as an adjustable stand. ABS plastic construction for heavy-duty use; an adjustable stand to meet varied operation requirements
- Flexible communications. Multi-interfaces include keyboard, RS-232C, USB and wand

Specifikacija

- Light Source: 650 nm visible laser diode (LVD)
- Depth of Field: 0 – 200 mm for UPC/EAN 100%
- Scan Pattern: 5 directions of scan field
- Scan Rate: Omnidirectional: 1,400 scans per second
- Single-line: 74 scans per second
- Number of Scan Line: 20
- Minimum Bar Width; 5 mil @ PCS 90%
- Print Contrast: 30% @ UPC/EAN 100%
- Indicators (LED): Three-color LED (blue, red & white)
- Beeper Operation: Programmable tone & volume
- System Interfaces: Keyboard wedge, RS-232, USB, wand emulation
- Cable: Standard 2m straight
- Power Consumption: 1.0 watts
- Operating Current: 200 mA typical
- Laser Class: CDRH Class IIa; IEC 60825 Class 2
- EMC: CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 104°F)
- Humidity: 5% - 95% RH (non-condensing)
- Ambient Light Injection: Up to 4,500 Lux (fluorescence)
- Shock: Designed to withstand 1.5 m drops
- 1D Barcodes: UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, Japanese Bookland EAN, Code 39, Code 39 with full, ASCII, trioptic Code 39, Codabar (NM7), Code 128, Code 128 with, full ASCII, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32

Dokumenta:

Funkcije

- Dual-laser technology. Enables a 32-line scan pattern, 2,400 scans per second for lighting quick and accurate reads within a broadened scan field - Z-SCAN technology. ZEBEX Proprietary real-time hardware decoding ensures instant recognition & decoding of 1D codes - Strict IP54 standards. Durable, environment-resistant housing - Barcode stitching. An applied logic for deciphering and rebuilding damaged and truncated barcodes, increasing first-pass reads and ensures high throughput - Instant “objective-fly-by” automatic wake-up. Reduces power demand and extends scanner life as it “wake up” from automatic sleep mode when passed over a barcode - Visual diagnostic blue LED. Provide enhanced user feedback of scan status - Easy on-site configuration and upgradeability. Easy to set up and configure using either a Windows-based program or a barcode scanning-based guide; electronically erasable flash memory ensures simple on site upgrading - RFID reader and optional built-in EAS antenna capable. Ready for fast-evolving retail market demand

 Specifikacija

- Light Source: Dual 650 nm visible laser diodes
- Depth of Field: 0 – 216 mm (UPC/EAN 100%)
- Width of Field: 90 mm @ contact; 218 mm @ 216 mm of depth
- Number of Scan Lines: 32
- Scan Speed: 2,400 scans per second
- Scan Pattern: 8 directions of scan field
- Minimum Bar Width: 5 mil @ PCS 90%
- Print Contrast: 30% @ UPC/EAN 100%
- Indicators (LED): Two-color LED (blue & red)
- Beeper Operation: Programmable tone & beep time
- System Interfaces: Keyboard, RS-232C, USB 1.1, wand, aux. RS-232
- Cable: Standard 2 m straight
- Power Consumption: 1.5 watts
- Operating Current: 300 mA
- Laser Class: CDRH Class IIa; IEC 60825-1: Class I
- EMC: CE & FCC DOC compliance
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -20°C – 60°C (-4°F – 140°F)
- Humidity: 5% – 95% RH (non-condensing)
- Light Levels: Max. 4,000 Lux (fluorescence)
- Shock: Designed to withstand 1 m drops
- Compatibility: EAS compatible
- 1D Barcodes: UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, Japanese Bookland EAN,Code 39,Code 39 with full ASCII, trioptic Code 39, Codabar (NM7), Code 128, Code 128 with full ASCII, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, MSI/Plessy, China Postal Code, Code 32
- Options: IATA Code, Industrial 2 of 5, Standard 2 of 5, Discrete 2 of 5, 90 mm @ contact; 218 mm @ 216 mm of depth RSS variants

Opis

Multi-interface Omni-Directional Laser Scanner with RS232/KW cable

Funkcije

- Support both omnidirectional and single-line scanning. Button switch in between omnidirectional and single-line scanning - Aggressive scanning performance. Powerful 20-line laser yields 1400 scans per second for omnidirectional scanning, and 74 scans per second for single-line scanning - Z-SCAN technology. ZEBEX proprietary real-time hardware decoding ensures instant recognition and decoding of the most popular 1D barcodes - Ergonomic and rugged design as well as an adjustable stand. ABS plastic construction for heavy-duty use; an adjustable stand to meet varied operation requirements - Flexible communications. Multi-interfaces include keyboard, RS-232C, USB and wand

 Specifikacija

- Light Source: 650 nm visible laser diode (LVD)
- Depth of Field: 0 – 200 mm for UPC/EAN 100%
- Scan Pattern: 5 directions of scan field
- Scan Rate: Omnidirectional: 1,400 scans per second
- Single-line: 74 scans per second
- Number of Scan Line: 20
- Minimum Bar Width; 5 mil @ PCS 90%
- Print Contrast: 30% @ UPC/EAN 100%
- Indicators (LED): Three-color LED (blue, red & white)
- Beeper Operation: Programmable tone & volume
- System Interfaces: Keyboard wedge, RS-232, USB, wand emulation
- Cable: Standard 2m straight
- Power Consumption: 1.0 watts
- Operating Current: 200 mA typical
- Laser Class: CDRH Class IIa; IEC 60825 Class 2
- EMC: CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 104°F)
- Humidity: 5% - 95% RH (non-condensing)
- Ambient Light Injection: Up to 4,500 Lux (fluorescence)
- Shock: Designed to withstand 1.5 m drops
- 1D Barcodes: UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, Japanese Bookland EAN, Code 39, Code 39 with full, ASCII, trioptic Code 39, Codabar (NM7), Code 128, Code 128 with, full ASCII, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32

Opis

2D skener velike brzine i preciznosti, odlično čitanje 1D/2D barkodova i sa većih distanci.

Dokumenta:

Software:

Opis

The Z-3051HS/BT inherits its powerful scanning performance of the handheld family products for up to 500 scans per second, it guaranties to begin in efficiency for any retail, office or warehouse environment.

Dokumenta:

Funkcije

- Support both omnidirectional and single-line scanning. Button switch in between omnidirectional and single-line scanning
- Aggressive scanning performance. Powerful 20-line laser yields 1400 scans per second for omnidirectional scanning, and 74 scans per second for single-line scanning
- Z-SCAN technology. ZEBEX proprietary real-time hardware decoding ensures instant recognition and decoding of the most popular 1D barcodes
- Ergonomic and rugged design as well as an adjustable stand. ABS plastic construction for heavy-duty use; an adjustable stand to meet varied operation requirements
- Flexible communications. Multi-interfaces include keyboard, RS-232C, USB and wand

 Specifikacija

- Light Source: 650 nm visible laser diode (LVD)
- Depth of Field: 0 – 200 mm for UPC/EAN 100%
- Scan Pattern: 5 directions of scan field
- Scan Rate: Omnidirectional: 1,400 scans per second
- Single-line: 74 scans per second
- Number of Scan Line: 20
- Minimum Bar Width; 5 mil @ PCS 90%
- Print Contrast: 30% @ UPC/EAN 100%
- Indicators (LED): Three-color LED (blue, red & white)
- Beeper Operation: Programmable tone & volume
- System Interfaces: Keyboard wedge, RS-232, USB, wand emulation
- Cable: Standard 2m straight
- Power Consumption: 1.0 watts
- Operating Current: 200 mA typical
- Laser Class: CDRH Class IIa; IEC 60825 Class 2
- EMC: CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 104°F)
- Humidity: 5% - 95% RH (non-condensing)
- Ambient Light Injection: Up to 4,500 Lux (fluorescence)
- Shock: Designed to withstand 1.5 m drops
- 1D Barcodes: UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, Japanese Bookland EAN, Code 39, Code 39 with full, ASCII, trioptic Code 39, Codabar (NM7), Code 128, Code 128 with, full ASCII, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32

Opis

The Z-3051HS/BT inherits its powerful scanning performance of the handheld family products for up to 500 scans per second, it guaranties to begin in efficiency for any retail, office or warehouse environment.

Funkcije

Powerful scanning performance
Up to 500 scans per second

Z-SCAN technology
ZEBEX proprietary real-time hardware decoding ensures instant recognition and decoding of the most popular 1D barcodes

Streamlined, rugged design
Easy-to-hold grip for comfortable use nd with solid ABS plastic housing for long-lasting durability

LED scan indicator and programmable beeper
For enhanced user feedback of scan status

Flexible communications
Multiple interface include keyboard, RS-232C, USB, KB and Bluetooth.

Specifikacija
- Light Source: 650nm visible laser diode
- Depth of field: 35-450 nm
- Scan Angle: 52°
- Scan rate: 500 scans per second
- Pitch/Roll/Screw Angle 65°/30°/65°
- Minimum Bar Width: 5 mil @ PCS 90%, Code 39
- Print Contrast: 30% @ UPC/EAN 100%
- Indicators (LED): Three-color LED (green, red & blue)
- Beeper Operation: Programmable tone & beep time
- System interface: Keyboard, RS-232C, USB1.1, wand
- Power Consumption: 1.0 watts
- Operating Current: 200mA
- Laser Class: CDRH Class IIa; IEC 60825-1: Class 1
- EMC: CE & & FCC DOC compliance
- Operation Temperature 0°C - 50°C (32°F - 122°F)
- Storage Temperature -20°C - 65°C (-4°F - 149°F)
- Humidity: 5% - 95% RH (non-condensing)
- Light Levels: 4500 Lux(fluorescence); 100000 Lux (sunlight)
- Shock Designed to withstand 1m drops
- 1D Barcodes:
UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, Japanese Bookland EAN, Code 39, Code 39 with full ASCII, trioptic Code 93, Interleaved 2 of 5 (ITF), Addendu, 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32
- Programing methods:
(a) Barcode manual
(b) RS-232 command via RS-232
(c) Windows AP configuration
- Firmware: By flash memory
- Option: Industrial 2 of 5, Standard 2 of 5, Discrete 2 of 5, Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS variants, PDF417

Dokumenta:

Opis

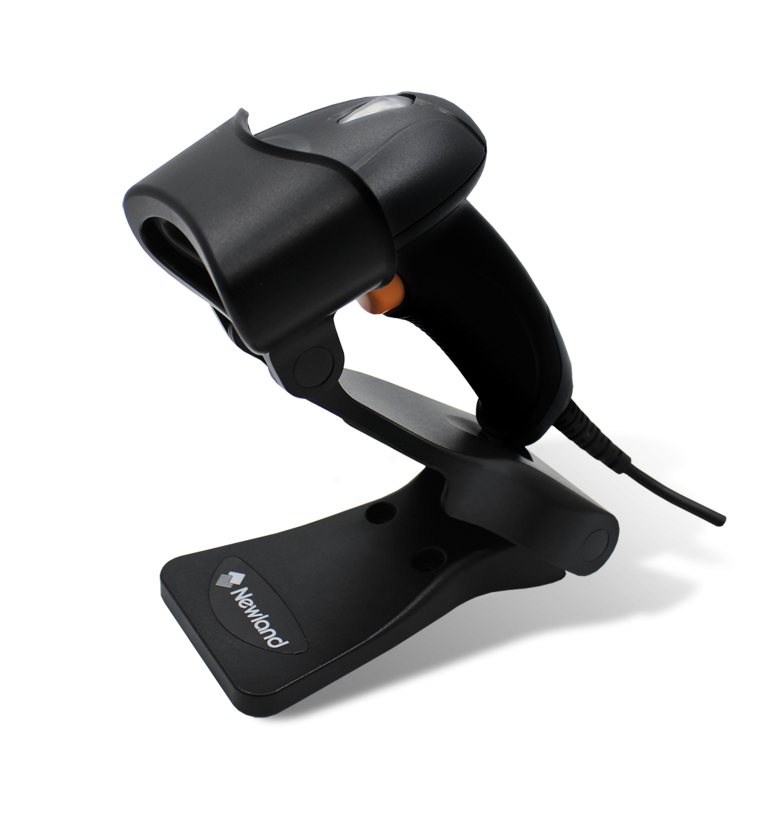

2D barkod skener sa postoljem.

Dokumenta:

Opis

2D barkod skener visokih performansi, izuzetno čita 1D i 2D barkodove.

Dokumenta:

Opis

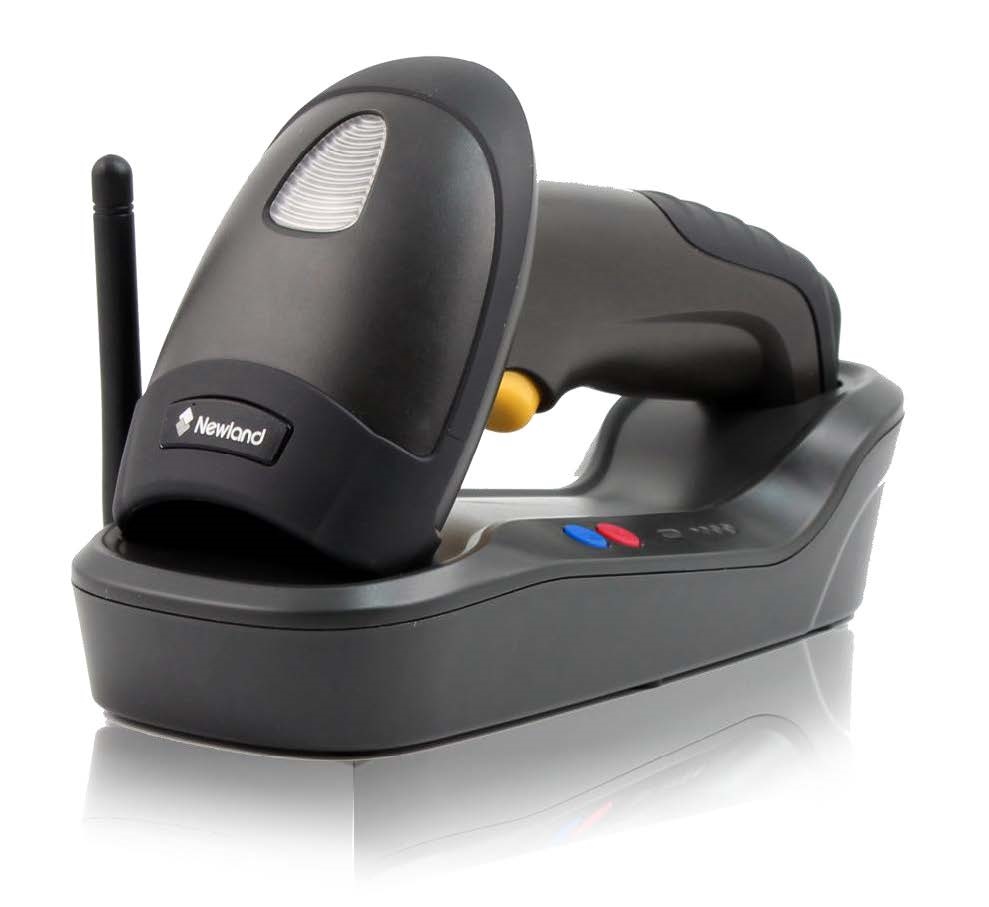

Wireless (ZigBee) barkod skener sa LinearImager tehnologijom. Mogućnost autonomnog rada pri čemu se skenirani barkodovi čuvaju u memoriji (baferu), a nakon uspostavljanja veze prenose se na PC.

Dokumenta:

Opis

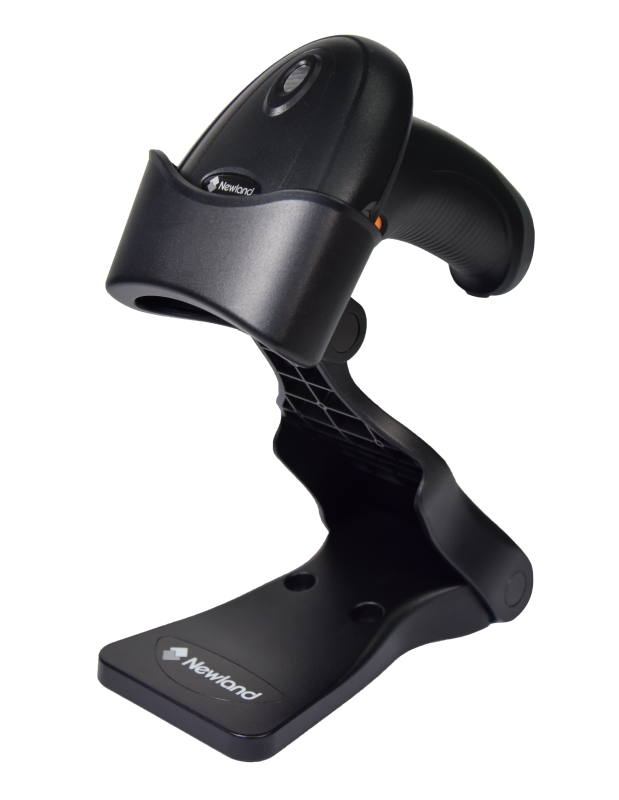

Novi unapredjeni model Newland HR-11 sa superiornom Linear Imager tehnologijom.

Dokumenta:

Opis

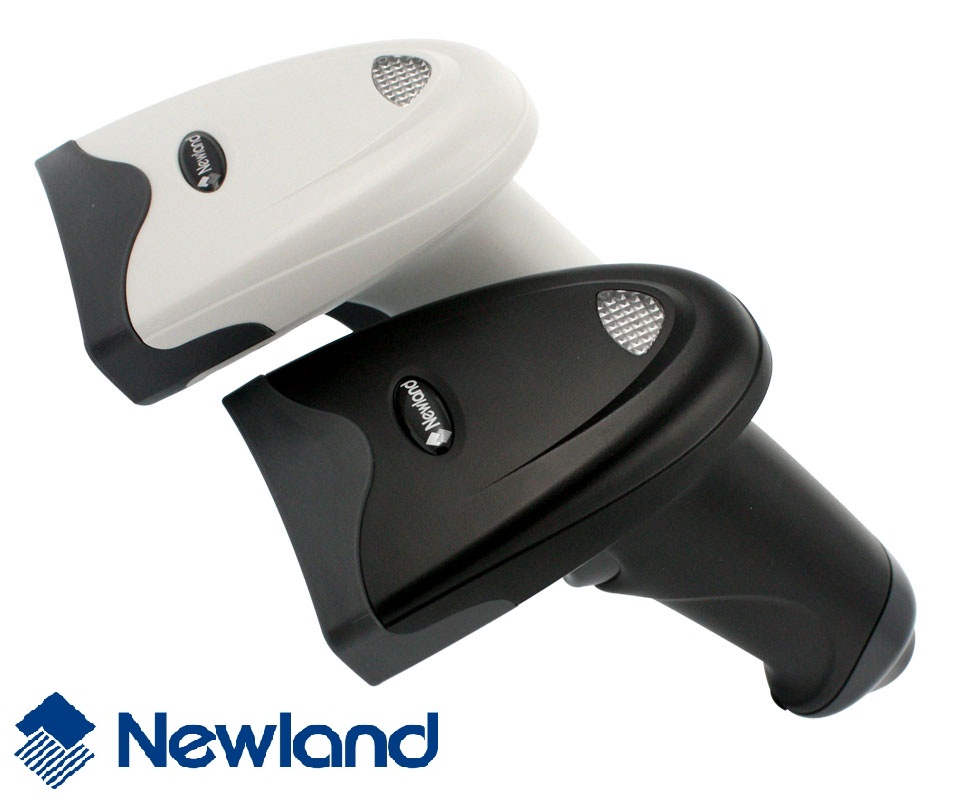

Bar kod skener NEWLAND HR-100 sa inovativnom Linear imager tehnologijom! Cita sve tipove 1D bar kodova. Interfejs: RS232, PS/2 ili USB.

Dokumenta:

Opis

Skener specijalizovan za čitanje 2D barkodova sa ekrana mobilnih telefona.

Dokumenti:

Opis

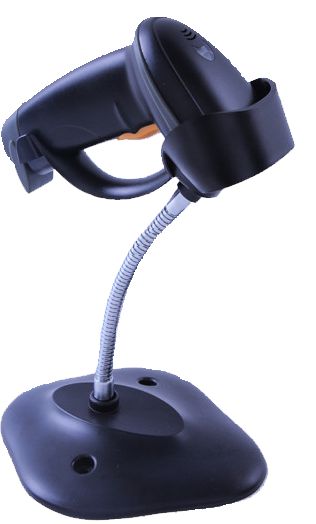

Laserski 1D barkod skener sa stalkom.

Dokumenti:

Opis

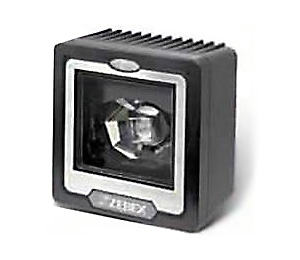

Višelinijski ugradni barkod skener, namenjen za spoljnju i unutrašnju primenu.

Primena: ulazne barijere, očitavanje ulaznica, price-checker..
