Opis

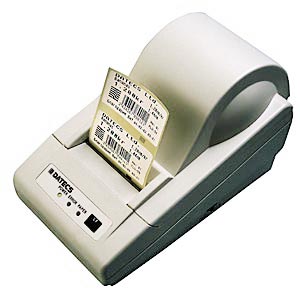

The LP-50 is a thermal label printer designed to print small-sized labels and graphics on thermal paper. The information is arranged in a template form, which can be partially modified under customer demand.

Dokumenta

Software

Opis

LP-1000 is a thermal label printer designed to print small sized labels and graphics on thermo-sensitive paper. It is particularly useful when printing information, arranged in a template form, which has to be partially modified under custom

Specifikacija

- Line thermal dot printing system
- Printing width: 76 mm/608 dots or 54 mm/432 dots
- Dot density: 8 dots/mm / 203 dpi (horizontal, vertical)
- Printing speed: 150 mm/sec (800 dots line/sec)
- Character sizes: 8 x 12, 10 x 16, 12 x 20, 14 x 24, 32 x 48 and loadable
- Bar codes: Code 39, Code 93, Code 128, Codebar; EAN 8, EAN 13, EAN 128, Interleved 2 of 5, UPC - A, UPC - E and others
- Interface serial (RS 232 C)
- Input buffer 1024 Bytes
- Operating temperature 5° C to 40° C 35 - 85% RH (no frost)
- Storage temperature -20° C to 60° C 10 - 90% RH (no frost)
- Reliability: 50 Million pulses of printer head and 500 000 cuts of auto cutter

Dokumenta

Opis

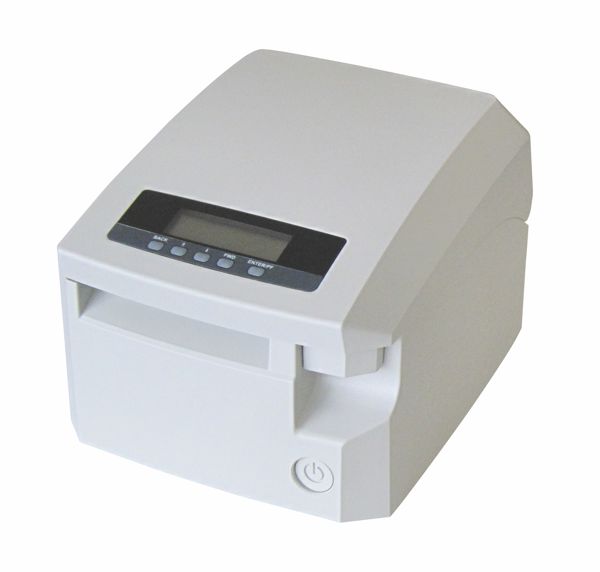

ECS/POS Thermal printer

Funkcije

- Printing Method: Line Thermal Dot Printing
- Print width: 72 mm paper / 576 dots
- Dot Density: 8 x 8 dots/mm (203dpi x 203 dpi)
- Print Speed: Max 220 mm/sec (1760 dots line/sec)
- Characters per line: Font A - C: 48 characters/line, 36 colomns, 12 x 24, Font B - D: 64 characters/line, 48 colomns, 9 x 16
- Recommended paper: Thermal paper Roll: 80 mm or 58 mm / Ф to max 102 mm, thickness 65-85 µm
- Paper Loading: Easy paper lading method

Specifikacija

- Interfaces: RS 232C, USB - type v. 1.1, LAN – 100 Mbps(100BASE-TX)
- Emulation: ESC/POS
- Linear Barcode: EAN 8, EAN 13, UPC-A, UPC-E, Codabar, Code 39, Code 128
- 2-Dimensional Barcode: PDF 417, QR code
- Input Buffer: 36 864 b (Option 131 072b)
- Operating temperature +5°C to +40°C
- Operating humidity 35 to 85% RH (Free of dew condensation)
- Storage temperature -20°C to +60°C
- Storage humidity 10 to 90% RH (Free of dew condensation)
- Reliability Printer head life: 150 km printed paper
- Reliability Auto cutter life: 2 million pulses

Dokumenta

Software

Opis

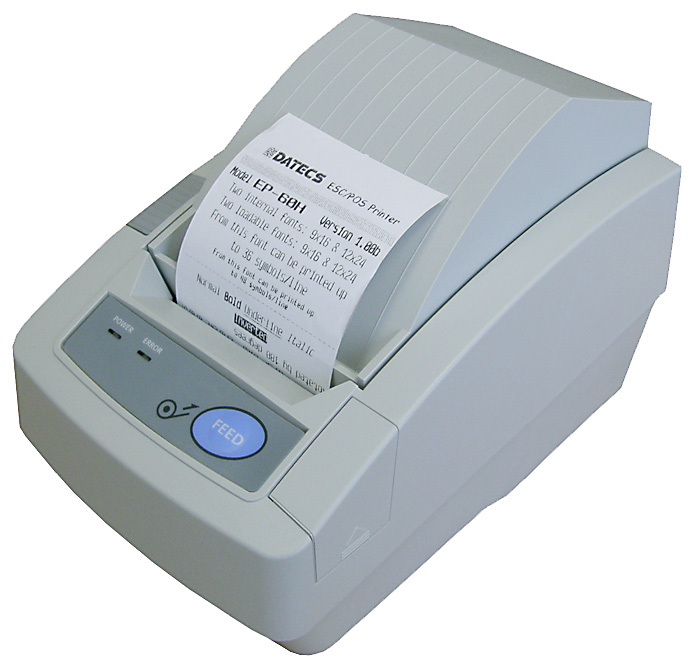

DATECS EP-60 is an ESC/POS printer with a wide variety of applications. DATECS EP-60 is developed for integration into communication terminals, POS systems, hospitality systems, etc. Datecs EP-60 allows fast printing of regular text as well as graphics, specified by the end user – bar code, company logo, etc. Datecs EP-60 is the newest in Datecs line of ESC/POS printers.

Funkcije

- Print Method: Line Thermal Dot Printing
- Print mechanism with Auto cutter: CAPG247A-E Seiko Instruments
- Dot Density: 203 dpi (8 x 8 dots/mm)
- Dot spacing: Horizontal – 0.125 mm (8 т./mm) ; Vertical – 0.125 mm (8 т./mm)
- Max print width: 54 mm / 432 dots per line
- Characters per line: 36 – for А and С Fonts ; 48 – for B and D fonts
- Paper feed: Step wise
- Print speed (Max.): 150 mm/s (1200 dots/sec)
- Integrated Character: Font А: 12 х 24 dots ; Font B: 9 х 16 dots
- Loadable Character: Font C: 12 х 24 dots ; Font D: 9 х 16 dots
- Thermal paper: 58 mm Width
- Outer roll diameter: max 83 mm
- Max. thickness: max max 80 µm (65-80 µm)
- Bar Code support 1D: EAN 13, EAN 8, UPC A, UPC E, Codabar, Code 39, Code 93, Code 128, Interleaved 2 of 5
- Bar Code support 2D: PDF417, QR
- Code Tables: CP 437/850/860/852/857/775/856/866/737/865, Lithuania, Poland, Latvia, PC/1252/1250/1254/1257/1251/1253/1255
- Logo: 1 Black & White, Dimensions 432 х 544 dots

Specifikacija

- Processor: H8S2350 – HITACHI
- Outer Flash memory: – 8Мbit 29F800DB and W29C04P – 90Z (for 4 Mbit Flash memory PLCC32 – for code tables.)
- RAM – 4Mbit K6X40008CIF – SAMSUNG
- Serial Interface: RS 232, type RS-232C – max 115200 bps
- USB Interface: USB, type USB 1.1Slave (emulated COM port)
- Emulation: ESC/POS Work with continuous paper
- Input buffer: 32 KB
- Stand by Power consumption: 300 mW
- Printing Power consumption: Max 48W
- POWER (LED green) Indication: flashes green when printer is on, blinks when thermal head is overheated
- ERROR (LED red) Indication: blinks red (1 time per second) when out of paper, blinks red (5 times per second) auto cutter problem
- Button FEED: paper feed, for status information
- Button ON/OFF: Power ON/OFF
- Supply control: Button ON/OFF
- Operating temperature and humidity: Temperature from 0°С to 40°С, Humidity from 30% RH to 80% RH
- Storage temperature and humidity: Temperature from -20°С to 60°С, Humidity from 20% RH to 90% RH

Dokumenta

Software

Opis

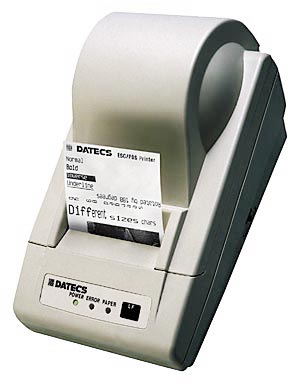

The EP-50 is fully ESC / POS compatible printer and can be used in POS networks, kitchens, pastry shops, different communication terminals, etc., EP-50M is compact, light weight and features small foot printing.

Funkcije

EP 50 is compact, light weight and features small foot printing. It has a high speed thermal printer with high resolution and great reliability of the printing head. The device has an incorporated input buffer and prints different kinds of barcodes.
Specifikacija
- Line thermal dot printing system
- Printing width: 48 mm / 384 points
- Dot density: 8 dots/mm / 203 dpi (horizontal, vertical)
- Printing speed: Up to 50 mm/sec
- Printing columns
48/36 columns (Font A) 12 x 24
64/48 columns (Font B) 9 x 16
- Code pages: International code page
- Full set loadable fonts
- Free loadable logo
- Bar codes: Code 39, Code 93, Code 128, Codebar; EAN 8, EAN 13, EAN 128, Interleved 2 of 5, UPC - A, UPC - E
- Interface serial (RS 232 C)
- Input buffer 64 KB
- Emulation ECS / POS
- 1 Drawer Kick-Out Connector
- Easy paper loading method
- Operating temperature 5° C to 40° C 35 - 85% RH (no frost)
- Storage temperature -20° C to 60° C 10 - 90% RH (no frost)
- Reliability 70 km of printed paper

Dokumenta

Software

Opis

The newest DATECS ESC/POS printer designed for many commercial applications

Funkcije

- Line thermal dot print method
- Cash drawer interface: 1 cash drawers are supported
- Auto cutter: ACS-531 (039002)

Specifikacija

- Print width: 72 mm / 576 dots, (52 mm / 416 dots)
- Dot density: 8 x 8 dots/mm (203 dpi)
- Print speed: Max speed 100 mm/s
- Number of print columns ( ) shows the value with 58 mm wide paper: Font A: 47 (34), Font B: 63 (46)
- Character size: Font A: 1.50 x 3.00 mm, Font B: 1.13 x 2.13 mm
- Character type: CP 437/850/860/852/857/775/856/866/737/865, Lithuania, Poland, Latvia, PC/1252/1250/1254/1257/1251/1253/1255
- Types of bar code: UPC-A/E, PDF417, EAN 13/8 columns, ITF, CODE 39, CODE 128, CODABAR, CODE 93
- Line spacing: 4.23 mm (1/6 inch)
- Paper roll: Thermalpaperroll:80mm/58mmx 83 mm
- Paper thickness: 65-75 µm
- Interfacing: Serial (RS-232C compliant), USB
- Input buffer: 16K bytes
- Power consumption: Approx. 70 W (in normal printing)
AC adapter: Rated input: 100 to 240V 150 VA, Rated output: DC 24 V, 2A
- Adapter: 32AD-U 32AD-E- Operating temperature and humidity: 5 to 40°C, 35 to 85% RH (No condensation)
- Storage temperature and humidity: -20 to 60°C, 10 to 90% RH (No condensation)
- Print head life: 100 km, 1 x 108 pulses (At normal temperature/humidity with commended paper used)
- Auto cutter life: 1 million cuts (At normal temperature/humidity with recommended paper used)

Dokumenta

Opis

ECS/POS Thermal printer

Funkcije

- Printing Method: Line Thermal Dot Printing
- Print width: 72 mm paper / 576 dots
- Dot Density: 8 x 8 dots/mm (203dpi x 203 dpi)
- Print Speed: Max 220 mm/sec (1760 dots line/sec)
- Characters per line: Font A - C: 48 characters/line, 36 colomns, 12 x 24, Font B - D: 64 characters/line, 48 colomns, 9 x 16
- Recommended paper: Thermal paper Roll: 80 mm or 58 mm / Ф to max 102 mm, thickness 65-85 µm
- Paper Loading: Easy paper lading method

Specifikacija

- Interfaces: RS 232C, USB - type v. 1.1, LAN – 100 Mbps(100BASE-TX)
- Emulation: ESC/POS
- Linear Barcode: EAN 8, EAN 13, UPC-A, UPC-E, Codabar, Code 39, Code 128
- 2-Dimensional Barcode: PDF 417, QR code
- Input Buffer: 36 864 b (Option 131 072b)
- Operating temperature +5°C to +40°C
- Operating humidity 35 to 85% RH (Free of dew condensation)
- Storage temperature -20°C to +60°C
- Storage humidity 10 to 90% RH (Free of dew condensation)
- Reliability Printer head life: 150 km printed paper
- Reliability Auto cutter life: 2 million pulses

Dokumenti

Software

Specifikacija

- Line thermal dot printing system
- Printing width: 76 mm/608 dots or 54 mm/432 dots
- Dot density: 8 dots/mm / 203 dpi (horizontal, vertical)
- Printing speed: Up to 100 mm/sec (800 dots line/sec)
- Printing columns
48/36 columns (Font A) 12 x 24
64/48 columns (Font B) 9 x 16
- Code pages: International code page
- Full set loadable fonts
- Free loadable logo
- Bar codes: Code 39, Code 93, Code 128, Codebar; EAN 8, EAN 13, EAN 128, Interleved 2 of 5, UPC - A, UPC - E
- Interface serial (RS 232 C)
- Input buffer 64 KB
- Emulation ECS / POS
- 1 Drawer Kick-Out Connector
- Automatic Label Cutter
- Easy paper loading method
- Operating temperature 5° C to 40° C 35 - 85% RH (Free of dew condensation)
- Storage temperature -20° C to 60° C 10 - 90% RH (Free of dew condensation)
- Reliability 70 km of printed paper

Dokumenta

Software

Opis

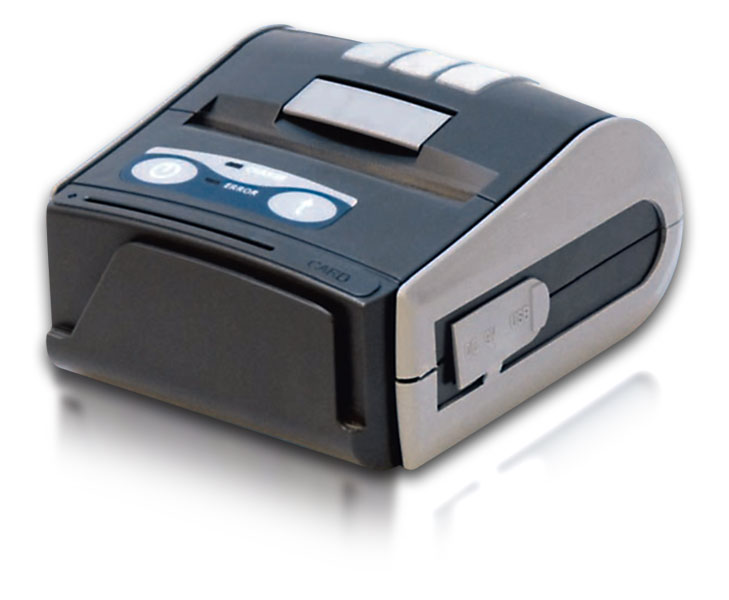

Small and lightweight mobile thermal printer with IrDA and Magnetic Card Reader

Funkcije

- Palm size
- Paper-drop-in style
- IrDA and serial interface
- Li-ion battery
- Auto power off
- Low battery monitoring
- Belt clip
- 40 or 50 mm diameter cover
- Internal charging circuit
- Strap holder
- Firmware and font data loaded through interface
- Mag stripe Card reader

Specifikacija

- Printing method - Line thermal dot printing
- Printing width - 58 mm/384 dots
- Dot pitch - 8 x 8 dots/mm (203dpi x 203dpi)
- Printing speed - Max. 50 mm/sec
- Number of columns - Font A: 32 columns: 12 x 24 dots Font B: 42 columns: 9 x 16 dots
- Character size - (W x H) Font A: 1.25 x 3.00 mm (12 x 24 dots) Font B: 0.88 x 2.13 mm (9 x 16 dots)
- Character table - ASCII, Windows code (Other codepage data are ready to load)
- Bar-code type - UPC-A/E, JAN-13/8, Code 39, ITF, CODABAR, Code 93, Code 128
- Line spacing - 4.23 mm (1/6 inch), Software selectable
- Paper - Thermal paper roll Width: 58 mm, Thickness: 60-65 µm
- Outer diameter - ш50 or 40 (option)
- Core diameter - Min. 8 mm
- Interface - IrDA Version 1.0 RS-232C with optional special cable (1200-115200 bps)
- Input buffer - 64K byte
- Sensor & error monitoring - Paper end, Cover-open, Low battery, Head overheat
- Mag stripe card reader - Track 1, 2, 3
- Battery - 40,000 print lines per charge Maximum recharge time: 3 hours
- Auto power off 1-60 min. (default 10 min.) Software selectable
- Operating environment 5 to 40єC
- Storage environment -20 to 60єC
- Reliability Thermal Head: 100,000,000 pulses or 50km Mechanism (MCBF): 15,000,000 lines
- Safety standard UL, C-UL, TUV, GS, CE Marking, FCC Class B, VCCI Class B

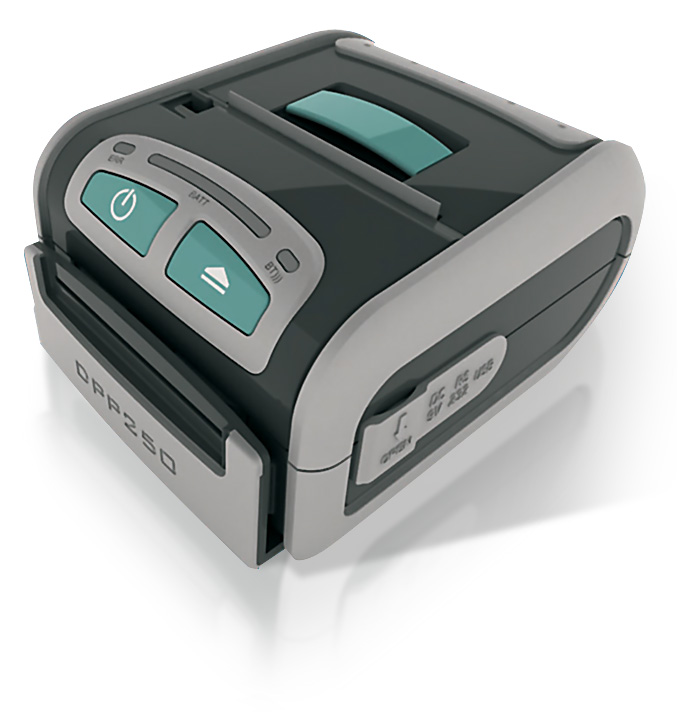

Opis

Mobile Thermal Printer

Funkcije

Mobile
Traveling sales
Retail
Transportation
Receipt Printer
Point of sales
Healthcare
Warehousing
Distribution

Specifikacija

- Emulation: ESC/POS
- Printer mechanism: FTP-638MCL103
- Printing Method: Thermal-line dot method
- Dot structure: 576 dots per line
- Dot pitch (Horizontal): 0.125 mm (8 dots/mm) - Dot density
- Dot pitch (Vertical): 0.125 mm (8 dots/mm) - Line feed pitch
- Effective printing area: max 72 mm
- Paper Feed System: step
- Printing Speed: Maximum 60mm/sec. (480 dot line/sec.) at 8.5 V

- Head life
* Pulse resistance: 100 million pulses/dot (under our standard conditions).
* Abrasion resistance: paper traveling distance 50km (print ratio: 25% or less)

- Fonts Font А: 12 x 24 dots, 48 characters per line
- Font B: 9 x 16 dots, 64 characters per line
- Loadable Font C: 12 x 24 dots, 48 characters per line
- Loadable Font D: 9 x 16 dots, 64 characters per line
- Font E (JIS and Shift-JIS): 24 x 24 dots, 28 characters per line - Japanese version only
- Font F (GB2312): 24 x 24 dots, 28 characters per line - Chinese version only
- Logo Registration: 1 Black & White BMP format ( 1-bit per pixel); Size: 576 x 248
- Barcode printing: EAN 13, EAN 8, UPC-A, UPC-E, CODEBAR, CODE 39, CODE 128, PDF417, QR Code
- FLASH Memory: 1 Mega bit
- RAM Memory: 36 864 bytes (option 131 072 bytes)
- Interfaces: RS-232 interface, type RS-232C, max 115200 bps
- USB interface, type USB v 1.1, compatible with 2.0
- Bluetooth interface (optional)
Cables RS-232 interface cable
- mini USB А to mini USB B cable (option)

- Configuradotion options
- Magnetic Card Reader - 3 track head, ISO7811 (optional)
- Smart Card Reader, ISO 7816-1/2/3 (optional)
- MIFARE Reader, ISO 14443-A (optional)
- SD card slot for SD card (optional)

- Battery capacity: Print 30 000 lines per charge

- Operation switches
- Button LF – Paper feed, Self test, Dump mode
- Button ON/OFF- Switch On and Switch OFF

- Recommended Paper
- Width, mm 80 or 58 / 60
- Diameter, mm 50
- Thickness, um 60 to 100 (some paper in this range may not be used because of paper characteristics)
- Safety standards and EMI "Drop" test – up to 110 cm and "Waterproof"
- Operating temperature: 0°C to + 50°C
- Operation humidity:
- 20 to 85% RH (no condensation)
- Storage temperature: -20°C to + 60°C
- Storage humidity: 5 to 95% RH (no condensation)

Dokumenta

Software

Opis

DPP-250 is the latest in the series of DATECS mobile printers. It is one of the smallest and lightest mobile printers in the World. DPP-250 offers all the features of our other popular models of mobile printers PP-50, PP-55, DP-350, yet can easily fit in your pocket.

Specifikacija

- Printing Method: Line Thermal Printing
- Total Dots: 384 dots/line
- Dot Density: 8 dots/mm (203 dpi)
- Print Speed: 50 mm/sec
- Print Width and Characters per Line: 48 mm
- Recommended Paper: Thermal Paper Roll: 57 mm / Ф 45 mm / thickness 60 µm
Interfaces:
- RS232
- Bluetooth
- USB
- Configuration options: n/a
- Emulation: ESC/POS
- Barcode Printing: EAN13, EAN8, UPC-A, UPC-E, Codabar, Code 39, Code 128
- Battery Charge Time: 2 hours
- Print Lines per Charge: 20 000 (fully charged)
- Buffer 56 Kb
- Reliability 50 km paper traveling distance
Environment:
- Operating temperature +5°C to +40°C
- Operating humidity 20 to 85% RH
- Storage temperature -20°C to +60°C
- Storage humidity 5 to 95% RH

Dokumenta

Software

Opis

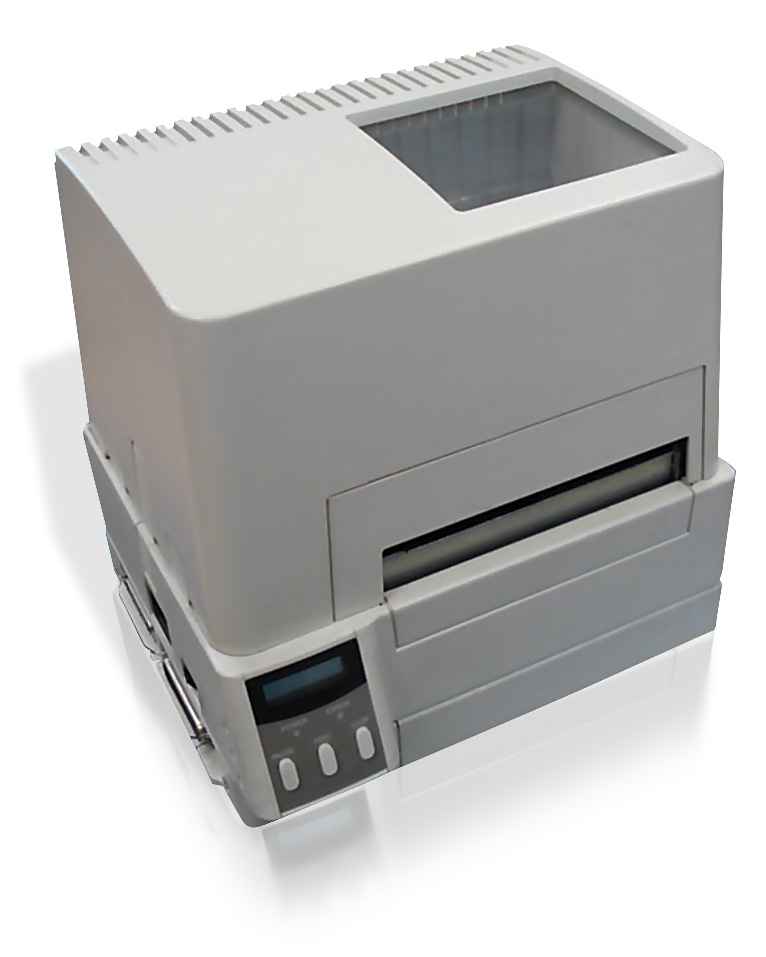

DATECS DLP-621 is the first thermal transfer printer designed by our engineers. With its introduction we are able to offer a bigger variety of label printers and allow our customers to print on any media. DLP-621 uses a print engine manufactured by Citizen to which we have added our own controller board and firmware. In this way we are in a position to offer a tailor made version for each customer.

Funkcije

- Printing Method: Thermal Transfer/Direct Thermal
- Types of Media: Continuous media, Label with gaps/black lines/notches
- Ribbon: Recommended Ribbon B110A Ricoh
Environment:
- Operating temperature +5PC to +40PC
- Operating humidity 35 to 85% RH (Free of dew condensation)
- Storage temperature -20PC to +60PC
- Storage humidity 10 to 90% RH (Free of dew condensation)

Specifikacija

- Total Dots: Head 864dots/line (max effective 832 dots/line)
- Dot Density: 8x8 dots/mm (203dpi x 203 dpi)
- Print Speed: 50 ч 100mm/sec
- Print width / length: Max 104mm/812.8mm
- Media width: Min 19.5mm – Max 118mm
- Media length: Min 6.35mm – Max 812.5mm
- Media thickness: Min 0.0635mm – Max 0.254mm
- Roll Media Diameter: Max external diameter 127mm, Max media core 76mm
- Ribbon width: Min 25.4mm – Max 114mm
- Roll diameter: 74mm
Interfaces:
- RS232 - 9600 7 115200bps
- Ethernet – 100Mbps(100BASE-TX)
- Device USB (full speed CDC)
- Font Size: 8x12, 10x16, 12x20, 14x24, 32x48 and loadable
- Emulation:Label Printing ELTRON compatible (EPL-2),label length 812.8mm maximum
- Barcode Printing: Code39, Code93, Code 128, CODABAR, EAN 8, EAN 13, EAN 128, Interleaved 2 of 5, UPC-A, UPC-E etc.
- User Memory 1000 KB
- CPU 32bits ARM7TDMI-S CPU core
- Input Buffer 50KB
- Reliability Printer head life: 100 million pulses 100km

Dokumenti

Opis

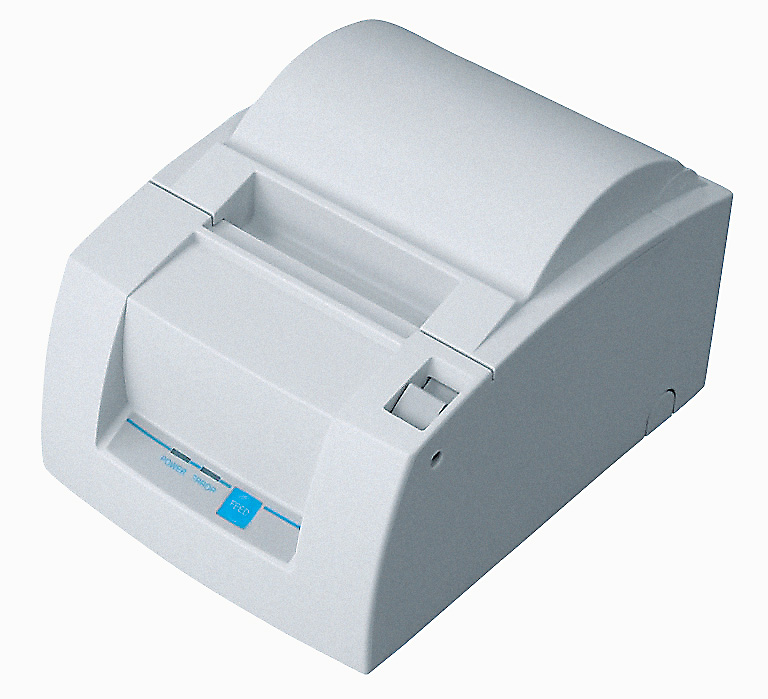

ECS/POS Thermal printer

Funkcije

- Printing Method: Line Thermal Dot Printing
- Print width: 72 mm paper / 576 dots
- Dot Density: 8 x 8 dots/mm (203dpi x 203 dpi)
- Print Speed: Max 220 mm/sec (1760 dots line/sec)
- Characters per line: Font A - C: 48 characters/line, 36 colomns, 12 x 24, Font B - D: 64 characters/line, 48 colomns, 9 x 16
- Recommended paper: Thermal paper Roll: 80 mm or 58 mm / Ф to max 102 mm, thickness 65-85 µm
- Paper Loading: Easy paper lading method

Specifikacija

- Interfaces: RS 232C, USB - type v. 1.1, LAN – 100 Mbps(100BASE-TX)
- Emulation: ESC/POS
- Linear Barcode: EAN 8, EAN 13, UPC-A, UPC-E, Codabar, Code 39, Code 128
- 2-Dimensional Barcode: PDF 417, QR code
- Input Buffer: 36 864 b (Option 131 072b)
- Operating temperature +5°C to +40°C
- Operating humidity 35 to 85% RH (Free of dew condensation)
- Storage temperature -20°C to +60°C
- Storage humidity 10 to 90% RH (Free of dew condensation)
- Reliability Printer head life: 150 km printed paper
- Reliability Auto cutter life: 2 million pulses

Software

Opis

Termalni štampač najnovije generacije, brzine 300mm/s !

Štampa 58mm ili 80mm, konekcije USB, RS232, LAN-RJ45 i WIFI (opcionalno)

Dokumenta:

Software
